About This

• IDEAL FOR LARGE SYSTEMS - This 600W low voltage transformer (300w maximum on each of the 2 breakers) has four voltage taps (12V, 13V, 14V, and 15V) to compensate for voltage loss on long or heavily-loaded wire runs. Note: Never load any transformer to more than 80 percent of its capacity (480 watts for this model). A 60" 18AWG SJTW cord and plug set is included.
• HIGH PERFORMANCE TOROIDAL CORE - Delivers more reliable, efficient, cooler and quieter operation than EI laminated transformers.

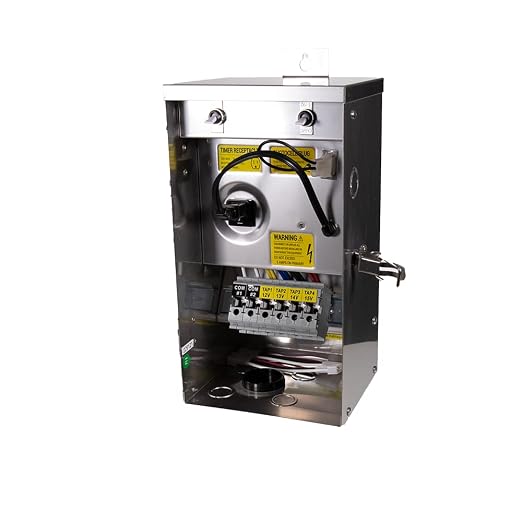

• STAINLESS STEEL ENCLOSURE - Featuring a hinged door that is both lockable and removable, built-in mounting bracket, and spacious wire compartment for easy installation. Cabinet dimensions: 12.75" tall x 7.13" wide x 5.9" deep. Top mounting bracket is 0.98" tall. Bottom mounting bracket is 0.83".

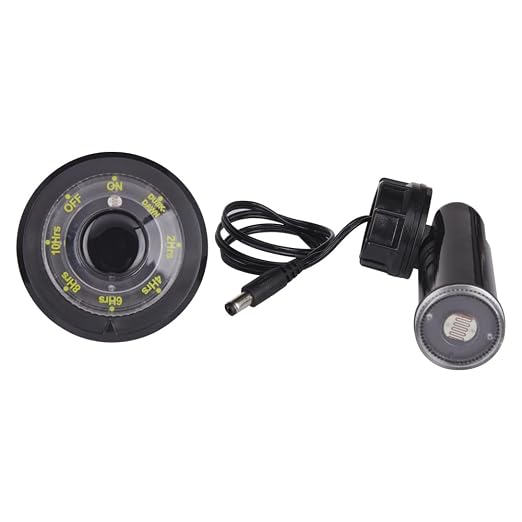

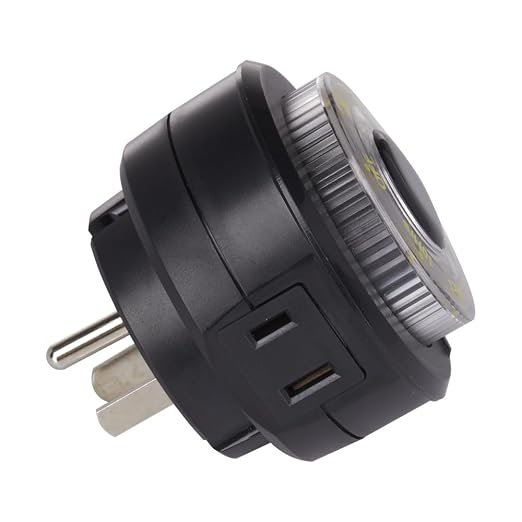

• TIMER/PHOTOCELL INCLUDED - This reliable, easy-to-use control unit requires no programming. Simply plug the unit into the transformer and turn the dial to one of the settings, which include ON, OFF, Dusk-to-Dawn, and 4, 6, 8 or 10 hours after dusk.
• LIFETIME WARRANTY - This professional grade transformer is ETL Listed and backed by the VOLT lifetime warranty.

Overview

• Brand : VOLT
• Power Source : Corded Electric
• Product Dimensions : 5.9"D x 7.13"W x 14.56"H
• Mounting Type : Wall Mount
• Specification Met : ETL
